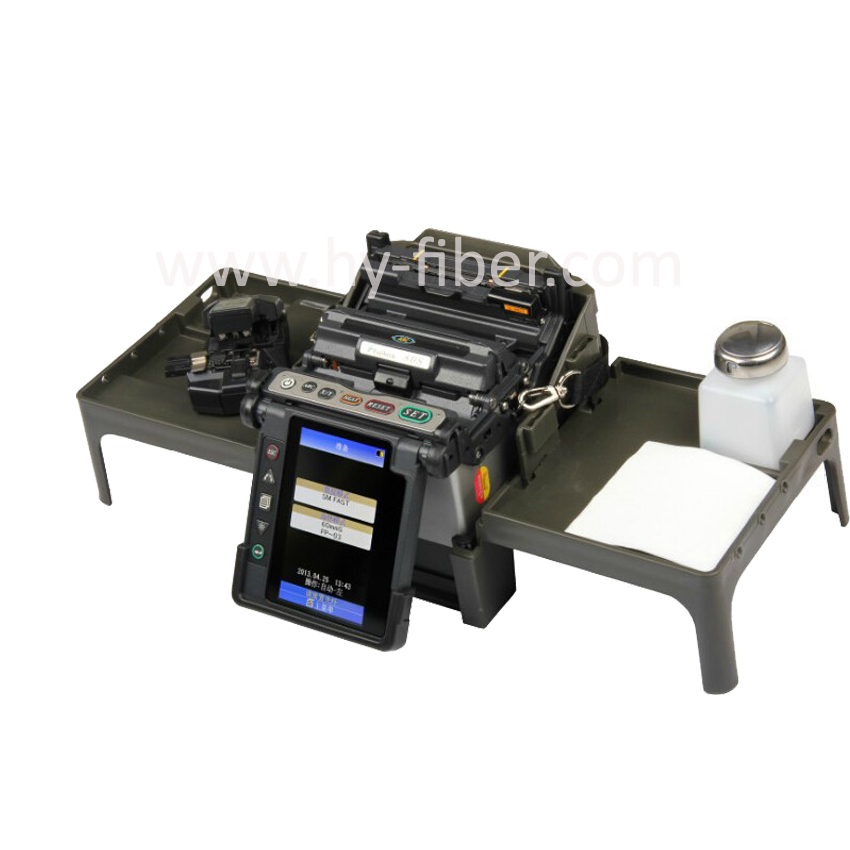

Description
| Features :
Downsized by 43% from conventional model |
| 2.1kg weight with battery |
| Ultra fast splicing(7sec.) |
| Ultra fast heating(28sec.) |
| G.657 fiber auto splicing function |
| IP52 rating and 76cm drop on 5 faces |
| Automatic arc calibration |
| Touch screen operation |
| Universal clamp for 250µm,900µm tight and loose buffer fiber |
| User selectable heater clamp operation |
| Support bi-directional splicing operation |
| Equipped with onboard training vedio |
| Upgrades software via internet |

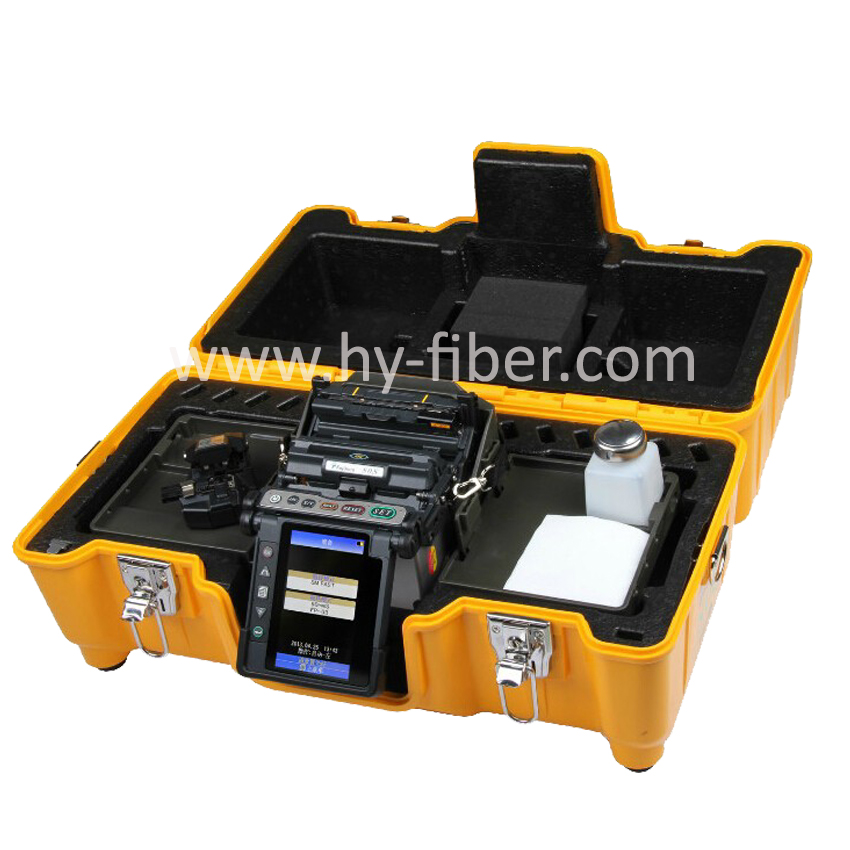

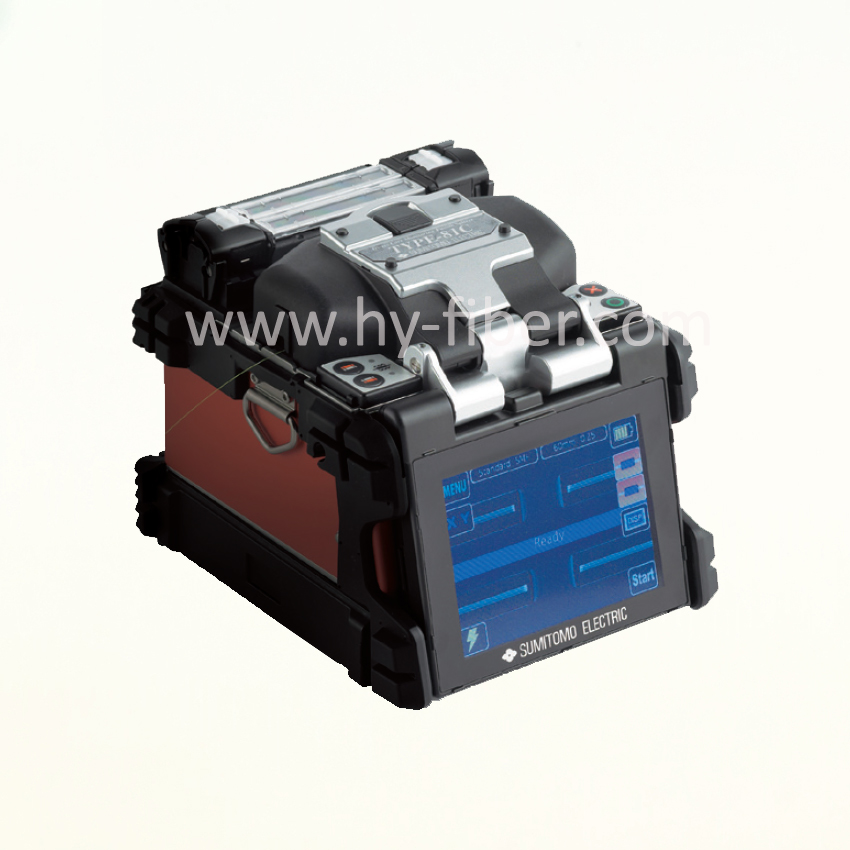

| Product name TYPE-81C |
| Optical fiber requirements Material Silica glass |
| Profile types SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653),
NZDSF (ITU-T G.655), BIF (ITU-T G.657), EDF |
| Fiber diameter Cladding diameter: 80μm~150μm, Coating diameter:
100μm~1,000μm |
| Applicable fiber or cable size up to ø1,000μm Drop cable (2.0×3.1mm) Indoor cable
(2.0×2.0mm) |
| Cleave length 5~16mm 10mm |
| Standard performance Splice loss (typical) *1 SMF: 0.02dB, MMF: 0.01dB,
DSF: 0.04dB, NZDSF: 0.04dB |
| Splicing cycle time (typical) 7sec. (Quick mode), 7.5sec. (SMF standard mode),
8sec. (Auto mode) |
| Heating cycle time (typical) 28sec. |
| Splice & Heat cycles *2 Approx.200 |
| Fiber view & magnification Two CMOS cameras observation 320X (zoom:700X) f
or X or Y single axis view, 88X for both X & Y dual axis view |
| Programs Splicing programs Max.300 |
| Heating programs Max.100 |
| Functions Loss estimation Provided |
| Splice image capture/ Splice data storage 64 images/10,000 splice data |
| Proof test 1.96N (200gf) |
| Attenuation splicing 0.1dB to 15dB in 0.1dB increments |
| Universal clamps for 250μm, 900μm tight & loose buffer fiber Provided |
| Reversible coating clamps Provided |
| Dual automatic independent heaters Provided (US patent 7,412,146) |
| User-selectable heater clamp operation Provided |
| Onboard user training video Provided |
| Automatic arc calibration Automatically compensates for environmental
condition changes |
| Arc test Provided |
| Display of remaining Splice & Heat cycles Provided (Battery mode) |
| Remote interactive maintenance Provided |
| Size/Weight Size 120(W)×154(D)×130(H)mm (without anti-shock rubber) |
| Weight 1.8kg (without battery), 2.1kg (with battery) |
| Monitor 4.1″ touch screen color LCD display |
| Terminals DC output DC12V (for JR-6) |
| USB port USB 2.0 (mini-Btype) |
| Storage media SD/SDHC memory card |
| Power supply AC input 100~240V, 50/60Hz (ADC-1430) |
| DC input 10~15V |
| Battery module Li-ion 11.1V, 4,600mAh (BU-11) |
| Operating condition Altitude:0~6,000m, Temperature: -10~+50°C, Humidity: 0~95% (non-condensing), Wind velocity up to 15m/s |
| Storage condition Temperature: -40~+80°C, Humidity: 0~95% (non-condensing),
Battery: -20~+30°C (long term) |
| Electrode life 3,000 arc discharges *3 |
