Hybrid Fiber Adapters (Converting fiber adapter) provide interconnection between two different fiber Optical types. There are two type of Hybrid fiber adapter, including Male-Female hybrid fiber adapter and Female-Female hybrid fiber adapter.

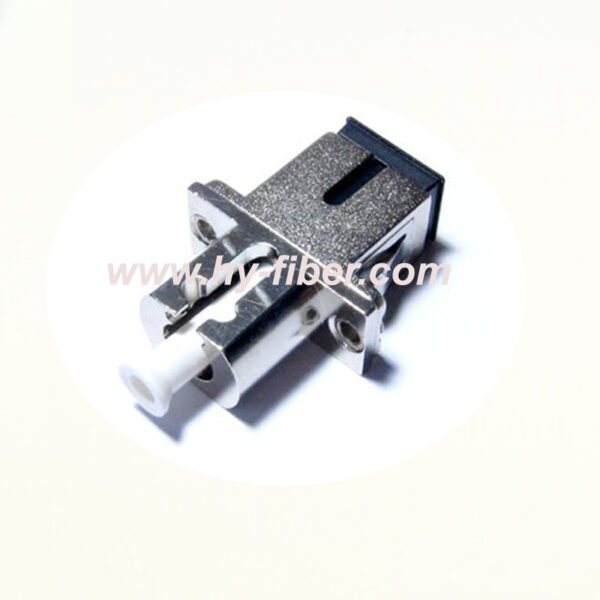

Female-Female hybrid fiber adapter (Bulk Type hybrid fiber adapter) is a fiber adapter with two different ends. We call it Female-Female Hybrid fiber adapter. Such as ST female at one side, FC female at the other side.
Our Hybrid Fiber Adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
We provide both Male-Female and Female-Female hybrid fiber adapters bridging popular connector types, such as ST, FC, SC, LC, MU, FDDI, E2000, MPO. They are precision made and manufactured to demanding specifications.
Termination Specification
| Optical Performance | Ceramic | Conformance |
| Insertion Loss | 0.20dB | IEC 61300-3-4 |
| Mating Durability | 500 | IEC61300-2-2 |
| Receptacle Retention force | 1N – 2.5N | IEC 61754-4 |
| Drop test | Drop height 1m, 5 drops | IEC 61300-2-12 |
| Operating Temperature | -25 to +70,12 cycles | IEC 61300-2-22 |
