Description
Hybrid Fiber Adapters (Converting fiber adapter) provide interconnection between two different fiber Optical types. There are two type of Hybrid fiber adapter, including Male-Female hybrid fiber adapter and Female-Female hybrid fiber adapter.

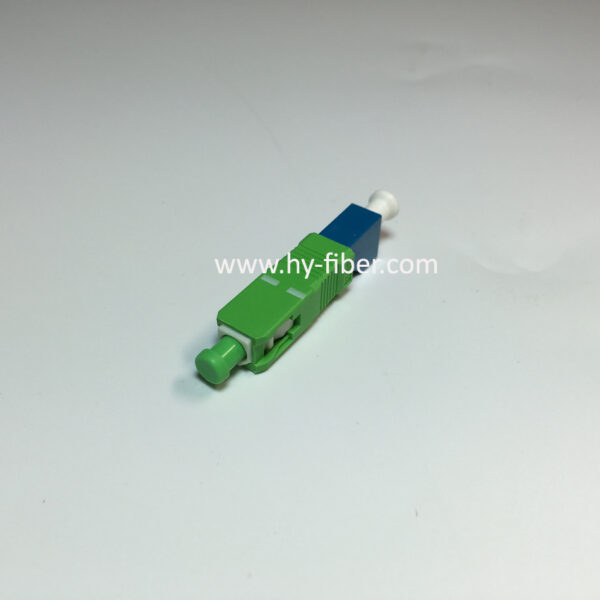

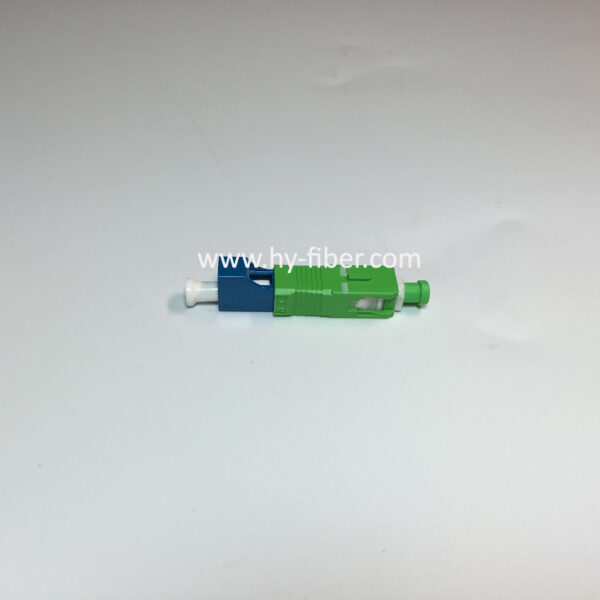

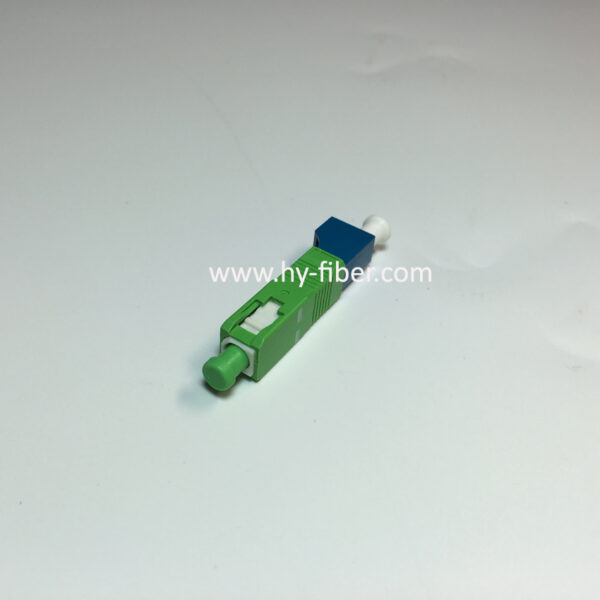

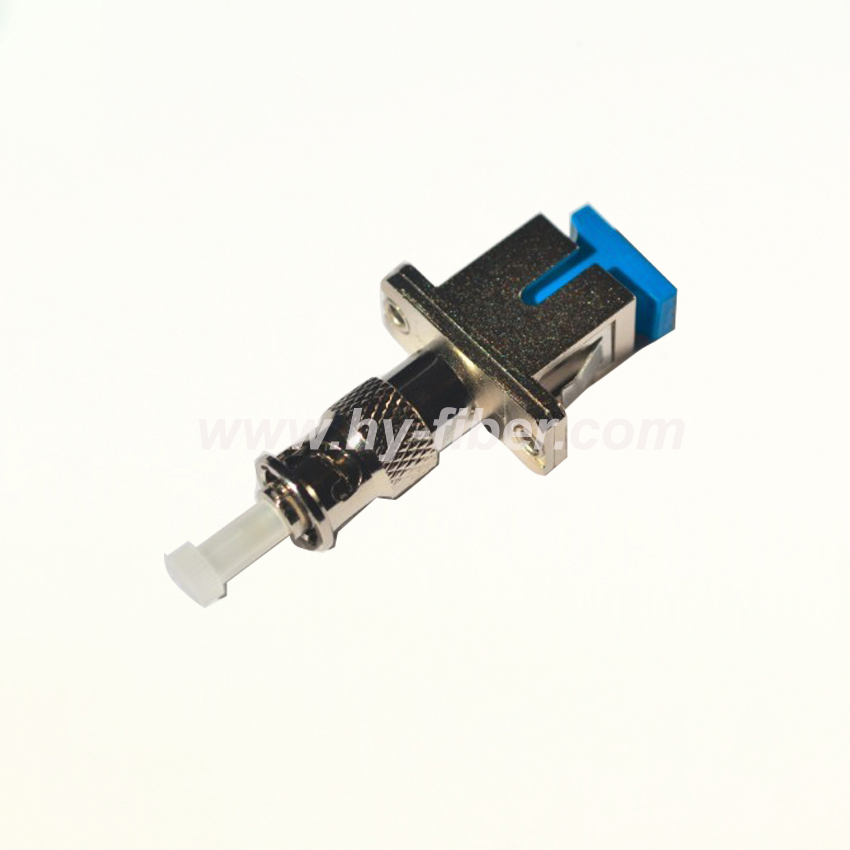

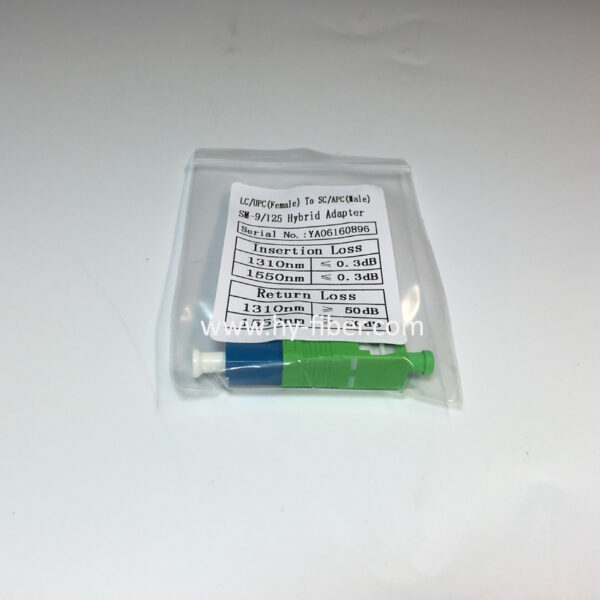

Male-Female hybrid fiber adapter(Build-out Type hybrid fiber adapter) is a fiber adapter with a connector plug(male) end and an adapter socket(female) end. We call it Male-Female Hybrid fiber adapter, Such as ST male at one side,FC female the order side.
Our Hybrid Fiber Adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
We provide both Male-Female and Female-Female hybrid fiber adapters bridging popular connector types, such as ST, FC, SC, LC, MU, FDDI, E2000, MPO. They are precision made and manufactured to demanding specifications.
Termination Specification
Optical Performance | Ceramic | Conformance |
Insertion Loss | 0.20dB | IEC 61300-3-4 |
Mating Durability | 500 | IEC61300-2-2 |
Receptacle Retention force | 1N – 2.5N | IEC 61754-4 |
Drop test | Drop height 1m, 5 drops | IEC 61300-2-12 |
Operating Temperature | -25 to +70,12 cycles | IEC 61300-2-22 |
