Description
Feature:

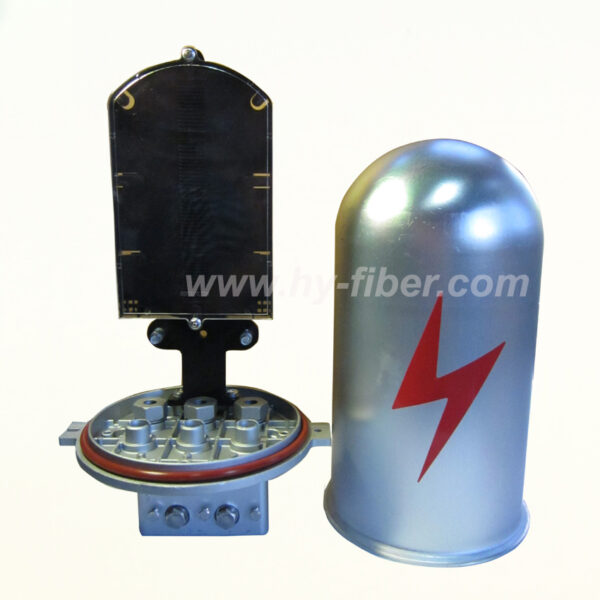

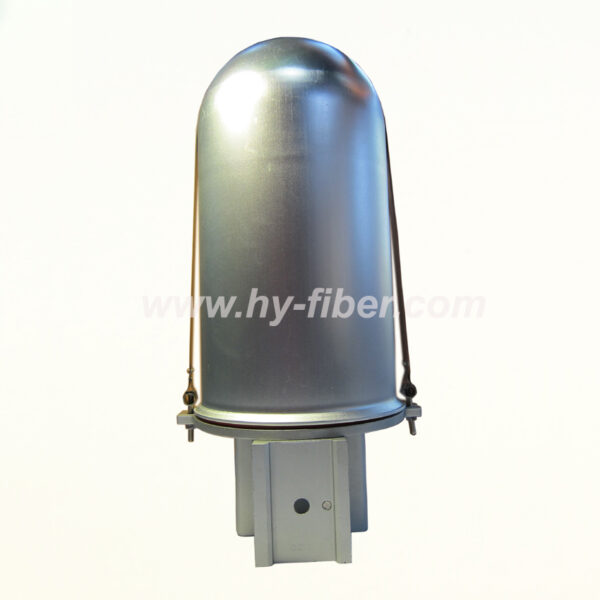

It is of high mechanical strength, good sealing, anti corrosion by the electrified alloy shell, with sealing of sealant ring and silica gel. It can be started, expanded, maintained and connected repeatedly, with the holding capacity of 48-piece of optical cables. The optical cable is fixed with aluminum clamps, protecting them from being hurt, at any part of the tower (the rods are fixed with stainless steel belts, convenient and applicable for the assembly of various diameters or positions).
Application:
- Cable connector box
- Uses: This product is suitable for ADSS, OPGW cable connector connection protection.
- Structural features: a cable connector and the remaining length of the use of feed-piece deposit defibrillators
joint protection in the form of heat shrink tubing reinforcement
- The connector box with seals and silicone seal, simple operation can be repeated to open, easy to use and
maintenance.
- According to the requirements of the cable connector box joints, and is equipped with a dedicated tower
or pole with a fixed mount.
- Deposit fiber panel with aluminum frame, the use of more lightweight, plastic stent fracture avoid accidents.
- Line mouth using precision lathe, sealing performance has been greatly improved, to avoid damage to the fiber.
- Alloy shell with electrochemical treatment, corrosion resistance, and excellent performance.
Technical Index:
- Radius of optical cable: ≥47mm
- Added loss of optical cable wheel ≤0.01dB
- Applicable temperature scope: -40~+80℃
- Physical dimensions (mm): 470 (H) × 200 (φ)
- Length of the wheeled optical cable: ≥1.5m
- capacity of optical cable: ≤144 piece
- Anti side pressure: ≥2000N
- Weight: 6.2kg
Order Information:
| Part No. | Capacity | Material | Dimension | Weight |
| HY-10-O-12A | 1 in,1 out,12 fibers | Aluminum Alloy | 500x200x180mm | 6kgs |
| HY-10-O-12B | 1 in,2 out,12 fibers | Aluminum Alloy | 500x200x180mm | 6kgs |
| HY-10-O-24A | 1 in,1 out,24 fibers | Aluminum Alloy | 500x200x180mm | 6kgs |
| HY-10-O-24B | 1 in,2 out,24 fibers | Aluminum Alloy | 500x200x180mm | 6kgs |
| HY-10-O-36 | 1 in,2 out,36 fibers | Aluminum Alloy | 500x200x180mm | 6kgs |
| HY-10-O-48 | 1 in,2 out,48 fibers | Aluminum Alloy | 500x200x180mm | 6kgs |
