MU Singlemode Connector 100pcs/pack

$107.00

Each pcs=USD1.07/pc

Description

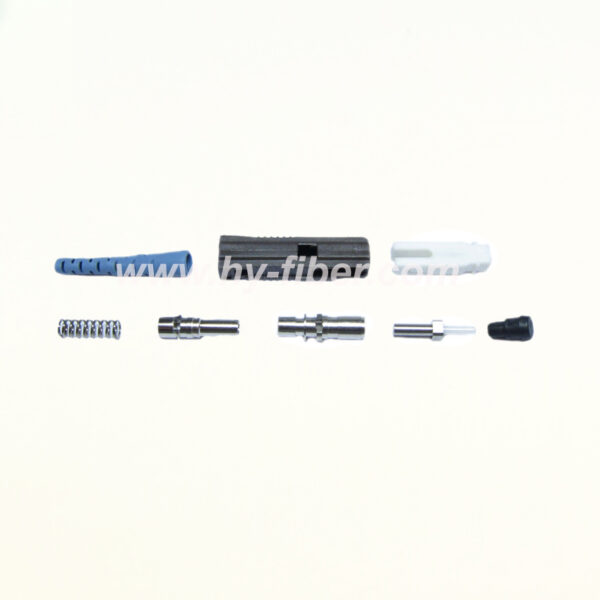

The MU connector uses a high performance 1.25 mm ferrule which gives the connector extremely high performance characteristics. The Optronics MU optical fibre connector comprises of a polymer body and a ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900μm and 2 mm cables. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule and a precision polymer housing provides consistent long-term mechanical and optical performance

Specifications:


Cable Diameter: 2mm 900 um
Shell(Connector versions available for) 2mm Cable 900 mm Buffered Fibre
Intermateability Optically and mechanically compatible with all

equivalent connectors

Single mode Insertion loss Single mode (APC) 0.12dB typica Single mode (APC) 0.12dB typical

0.25dB max

Multimode Insertion loss 0.2dB typical 0.5dB max
Vibration (Mated Pair) (IEC 61300-2-1) 10-55 Hz, =0.3dB Change 1.5mm P to P
Mating Durability (IEC 61300-2-2) 1000 mating cycles Clean every 25 < 0.2 dB Change
High Temperature (IEC 61300-2-18) 75°C for 96 hours =0.2dB Change
Damp Heat (IEC 61300-2-19) 60°C at 95% RH, 96 hours =0.2dB Change
Temperature Cycling (IEC 61300-2-48) -40 to +85°C, 42 cycles =0.2dB Change
Operating Temperature -40°C to +85°C
