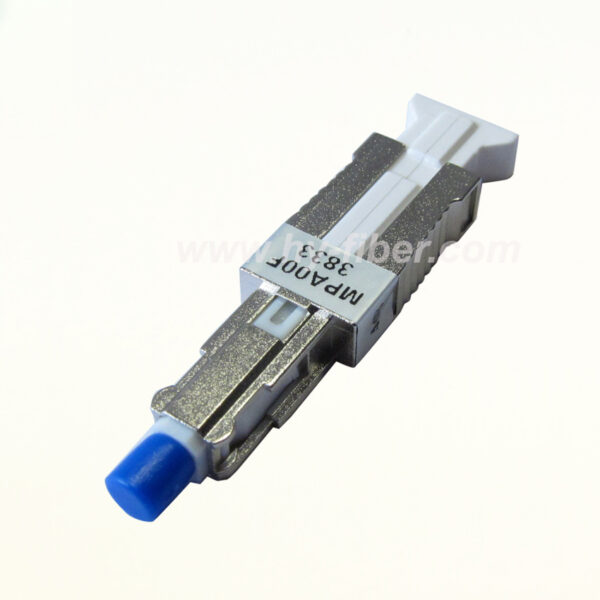

MU Singlemode Attenuator Pitch 4.5mm 0dB~25dB 10pcs/pack

$220.00

Each pcs=USD22.00/pc

Description

Description:

GH’s SM and MM Attenuators can be applied to adjust the power levels of signals in optical communications at the output of light sources, E/O converters and for testing the linearity or dynamic range of optical power meters.



GH’s Attenuators can also be used in optical amplifier systems to balance the gain across the different operating wavelengths.GH manufactures the SC, SC/APC, FC, FC/APC,ST,LC and MU styles to meet your specific requirements.



Features:

Precise attenuation value

Excellent reflectance

Perfect environmental stability and reliability

Flawless end face

Dual window(1310nm/1550nm)

1dB increment



Application:

Telecommunications

FTTH

CATV/LAN

Subscriber loop



Products Specifications:

Specification Value
Item Single-mode Multi-mode
Wavelength 1310nm and 1550nm 850nm and 1310nm
1310nm or 1550nm 850nm or 1310nm
Attenuation Range 1dB~30dB 1dB~20dB
Attenuation Variation ≦10dB ±0.5dB  ±0.75dB   , ±1dB
>10dB ±5%, ±10%, ±15% ±10%, ±15%
Reflectance PC ≧50dB ≧30dB
UPC ≧55dB ≧30dB
APC ≧65dB ≧30dB
Operation Temperature -40℃ ~ 75℃ -40℃ ~ 75℃
Storage Temperature -40℃ ~ 85℃ -40℃ ~ 85℃
