Description

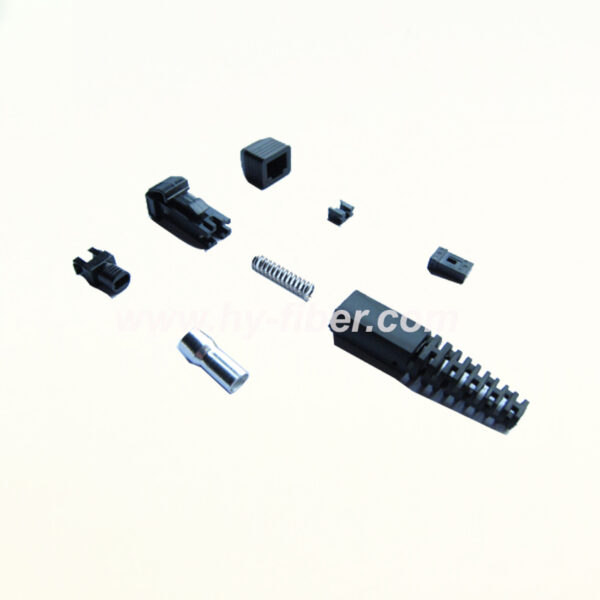

The MT-RJ connector is a development of the now legendary MT ferrule. This amazing technology is at the heart of many state of the art connectors. The MT ferrule in its various designs has the ability to connect anything from two fibres in the MT-RJ or up to 72 fibers in the latest versions of the MPO connector. The Optronics version of the MT-RJ, is capable of terminating any 125mm fiber. The flexibility of the connector allows it to be used in short run local area networks as well as longer haul cabling using single mode fiber. Designed to terminate two fibers within a single connector, reducing the risk of operator error when inter-connecting equipment and distribution panels. The MT-RJ has been deliberately designed to look and feel like the industry standard copper connector.
Specifications:
| Fibre Type | 9/125um | 50/125um | 62.5/125um | ||
| Fibre Count | 2 | ||||
| Cable Type | Mini Zip | ||||
| Adapter Bulkhead | Single connector – Duplex | ||||
| Optical Performance | |||||
| Insertion Loss (With master plug) | Standard Loss: =0.5dB | Low Loss: =0.35dB | Return Loss: =45dB | ||
| Vibration (Mated Pair) | (IEC 61300-2-1) 10-55 Hz, =0.3dB Change 1.5mm P to P | ||||
| Mating Durability | (IEC 61300-2-2) 1000 mating cycles Clean every 25 < 0.2 dB Change | ||||
| High Temperature | (IEC 61300-2-18) 75°C for 96 hours =0.2dB Change | ||||
| Damp Heat | (IEC 61300-2-19) 60°C at 95% RH, 96 hours =0.2dB Change | ||||
| Temperature Cycling | (IEC 61300-2-48) -40 to +85°C, 42 cycles =0.2dB Change | ||||
| Operating Temperature | -40°C to +85°C | ||||
