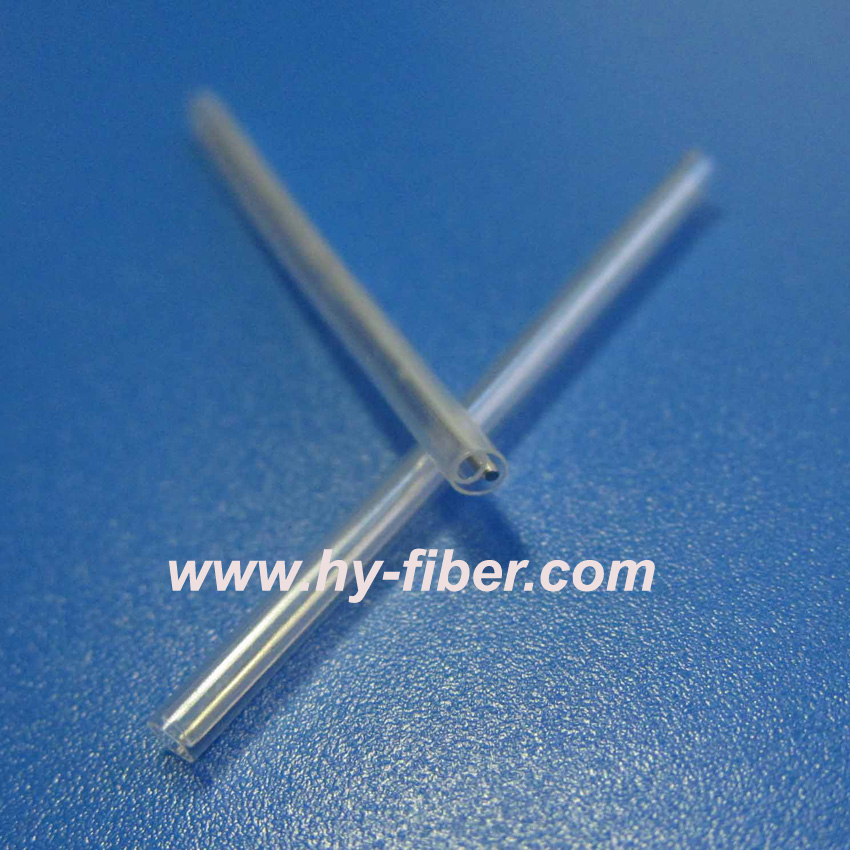

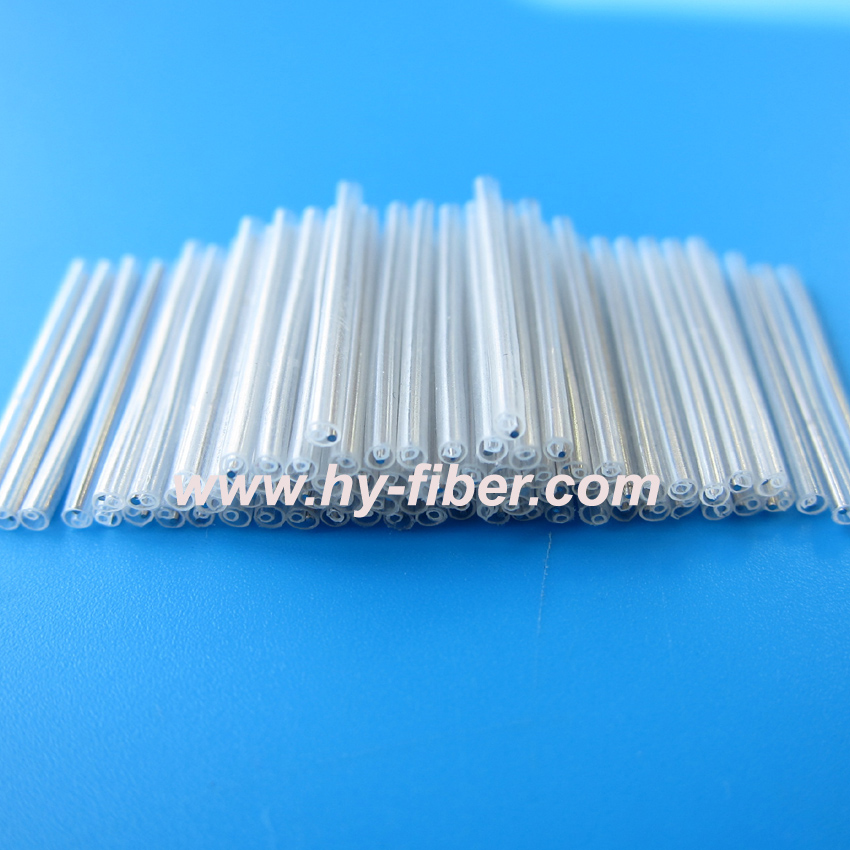

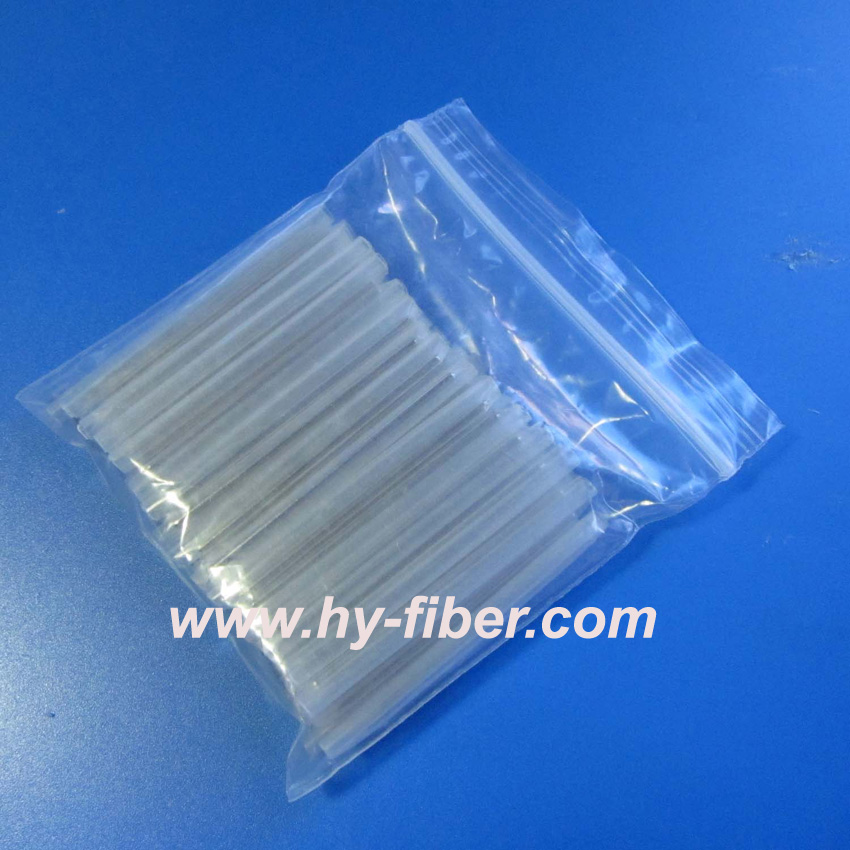

Mini Fiber Splice Protective Sleeve 25mm
Description
GH’s Mini- and Micro-size Fiber Optic Fusion Splice Protection Sleeves are designed to fit smaller areas for fiber optic splice storage.Micro Sleeves will only accommodate 250um coated optical fibers and have after-shrink diameter of 1.2mm,Mini Sleeves will accommodated 900um or 250um coated optical fibers and have after-shrink diameter of 2.0mm
Fusion splice protection sleeves provide vital protection at the fused juncture between too fusion spliced optical fibers.In addition to providing a substitute for the original fiber optic cable jacket,splice protection sleeves provide a degress of rigidity that prevents the spliced area from bending or flexing.
Specification
Single type sleeve materials
| Description | Material | Color |
| Outer Tubing | Polyolefin | Clear |
| Inner Tubing | EVA | Clear |
| Reinforce Steel Rod | SUS | N/A |
Specification
| Shrinking Temperature??? | 90 ~ 130 |
| Radial Shrinking Rate (%) | >50 |
| Axial Shrinking Rate (%) | <10 |
| Low Temperature Property | No crackle at -55? lasting 4 hours |
| Normal Operation Temperature??? | -55?~ +135? |
| Normal Operature Relative Humidity | ≤95% |
| Spark-over Strength (kV/mm) | ≥20 |
| Tensile Strength (Mpa) | 20 |
| Loss at -40? | 0.03dB |
| Loss at +60? RH95% | 0.01dB |
| Inner Lining: Ethy Vinyl Acetate (EVA): | melts at 65? |
Single Fiber Splice Protection Sleeve
| Outer tube | Outer diameter | 2.4mm±0.1 |
| Thickness | 0.2±0.05 | |
| Length | 25.0±1 | |
| Material | Flexible Polyolefin | |
|
Inner tube |
Inner Diameter | 1..7±0.1 |
| length | 25.0±1 | |
| Thickness | 0.12±0.05 | |
| Material | EVA | |
|
Steel bar |
Diameter | 0.8±0.05 |
| Length | 25.0±0.25 | |
| Meterial | 302 stainless steel rob | |
| Splicing finished diameter | 2.0±0.1 | |
| Operating temperature | -55? to+135? | |
| Material Used Conform to: MIL-1-23053/5 Class 1 and 3 | ||
