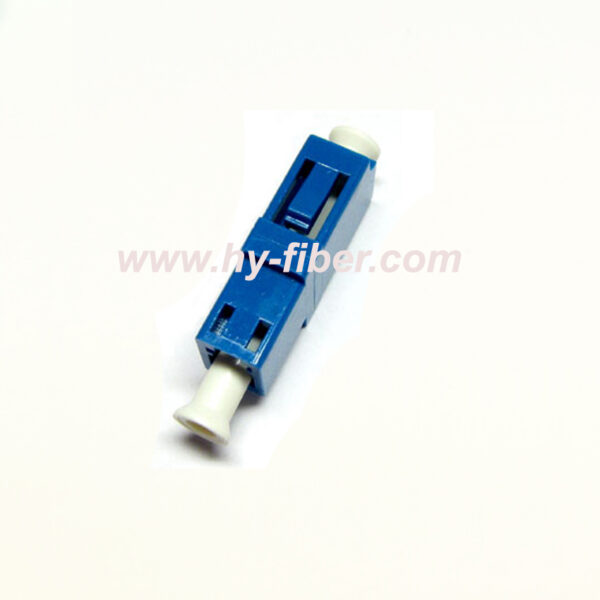

LC/UPC APC SM/MM Simplex Adapter 200pcs/pack

$42.00

Each pc=USD0.21/pc

Description

Description

GH offers a range of high quality LC adaptors which have high precision alignment sleeves for reliability and improved reconnectability. For single mode and multimode both applications a ceramic sleeve are supplied to ensure a high precision alignment. The housing is available in different colours with options for flange or flangeless body, metal clips or inbuilt clipsSpecification

Features / Benefits

  1. Complies with IEC 61754-4 and IEC 60784-14 standards
  2. High precision alignment sleeve
  3. Low insertion loss and improved reconnectability
  4. RoHS compliant
  5. Available in simplex and duplex adaptors
  6. SC simplex adaptors are available with a shutter



Applications

  1. Telecommunications networks
  2. CATV, LAN, MAN and WAN application
  3. Data processing networks
  4. Cable television
  5. Fibre-to-the-home
  6. Premises distribution



Termination Specification

Optical Performance Ceramic Conformance
Insertion Loss 0.20dB IEC 61300-3-4
Mating Durability 500 IEC61300-2-2
Receptacle Retention force 2N – 5.9N IEC 61754-4
Drop test Drop height 1m, 5 drops IEC 61300-2-12
Operating Temperature -25 to +70,12 cycles IEC 61300-2-22
