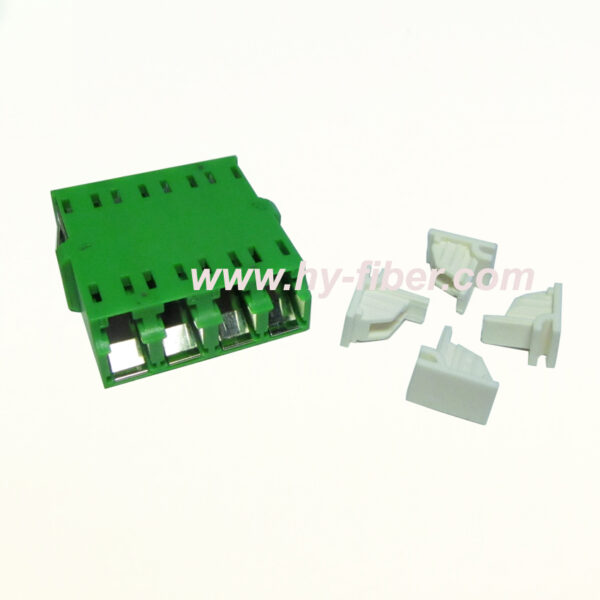

LC/UPC APC SM/MM Quad Shutter One Piece Adapter 100pcs/pack

$126.00

Each pc=USD1.26/PC

Description

Description:

GH introduces a true one piece housing design for the LC adapter. Available now in both the flanged type and also the no-flange type. This true one piece housing design has proven to be a more rugged design over the typical ltrasonic welded split flange type and the “pseudo” one piece design which has an ultrasonic welded cover.
The true one piece housing eliminates this welded seam and results in an adapter housing that will survive side forces that will break an adapter with a welded seam type construction. The breaking strength of the true one piece design also surpasses the current one piece design with the welded cover. In addition to the seam that is eliminated by the one-piece housing construction, the other noticeable difference will be the color.
Features:

  • One piece solid body, no welding point
  • Built in panel mounting plate
  • Rattle free wings to support tight fit in the panel
  • Inner shutter available
  • Availablein both flange type and no flange type configurations

Specification:

Item Characteristic
Insertion Loss <0.2dB
Durability <0.1dB typical change, >500mating
Flammability UL94-V0
Operating Temperature -40℃ to +75℃
Housing Material PC
Housing Color green
Application LC/APC
