Description
Description:

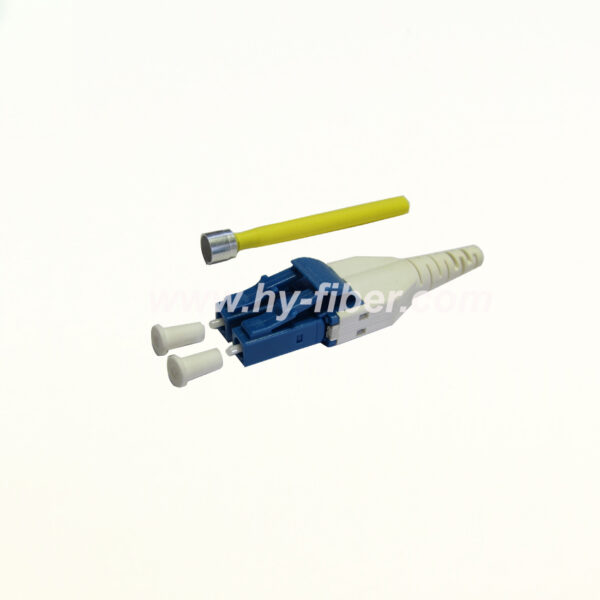

The LC Duplex Switchable Uniboot Connector is a unique design that allows the use of round style, 2.8mm or 3.8mm jacketed cable Instead of the traditional zipcord duplex cable for a more compact design. The housing of the LC Duplex Switchable Connector can be taken apart In the field without the use of any special tooling. The LC Duplex Switchable Uniboot Connector duplex LC allows the fiber polarity to be switched at the time of cable assembly Installation without having to re-terminate the connectors. This compact, easy to terminate connector kit uses standard LC back post and crimp design and therefore can be used with any standard LC boots with multiple color options, including the LC Flex Angle Boot.
Feature:
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- High precision alignment
- ROHS compliant
- Nickel plated brass body
- Free-floating ceramic ferrule
- Bayonet style housing for easy termination
Application
- Gigabit Ethernet;
- Active device termination;
- Telecommunication networks;
- Video;
- Multimedia;
- Industrial;
- Military;
- Premise installation
Specification:
| Descriptions | SM(PC) | SM(APC) | MM(PC) |
| Insertion loss(Typical) | <0.2dB | <0.12dB | <0.2dB |
| Return loss | ≥55dB | ≥65dB | ≥35dB |
| Durability | <0.1dB typical change,500 mating | ||
| Operating Temperature | – 40 to + 75 | ||
