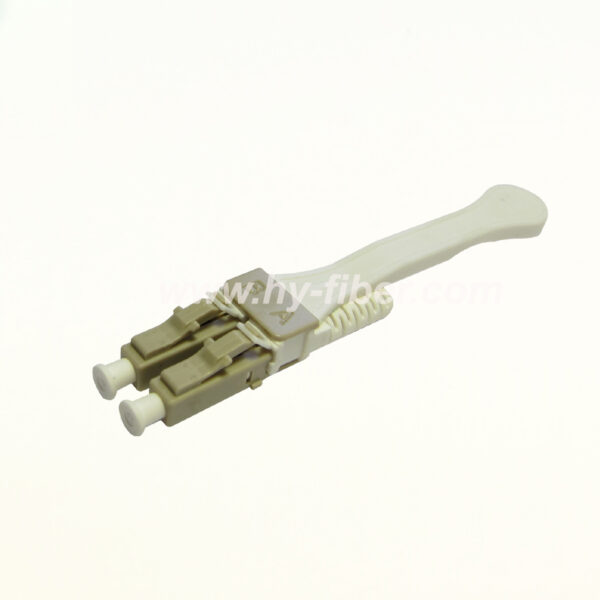

LC-HD High Density MM Connector with Pull Tab 200pcs/pack

$202.00

Each pcs=USD1.01/pc

Description

Description

The GH LC-HD is a totally unique design which can further increase panel density over currently available solutions and allow for the highest density possible. A gentle pull on the tab will disengage it from an extremely dense fiber optical panel. The pull tab is a perfect location to affix a connector label to help in the quick identification of the connector.

Features

Easy to release trigger connector

  • The GH LC-HD’s lever design utilizes a flexible “pull-tab” allowing for the connector to be disengaged easily from densely loaded panels without the need for special tools.
  • 60% increase in density Because the GH LC-HD connector can be removed using a simple pull tab, it eliminates the need for finger access to the LC latch mechanism, therefore LC adapters can now be mounted much closer than spacing required in the past.

LC-HD

Connector type Ferrule ID Housing Color Boot Type Boot Color
LC-HD Simplex SM: Premium 125 SM: Blue LC-HD Mini 900um White
LC-HD Duplex SM: Low Loss 125 MM: Beige LC-HD Mini 2.0mm
MM: Premium MM SM APC: Green LC-HD Mini 3.0mm
MM: OM3 Aqua



Pull Tab

Type Connector Type to Use with Tab Length Tab Color
LC-HD Pull Tab Simplex 61mm White
Duplex
