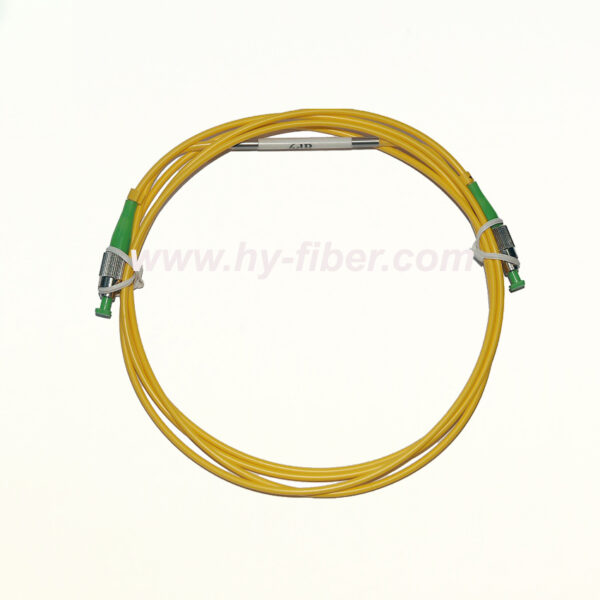

In-line Attenuated Patch Cord 10pcs/pack

$60.00

Each pcs=USD6.00/pc

Description

Description

  • An Attenuated Patch Cord is designed to attenuate an optical signal, usually to keep the detectors response in the linear region.A patch cord with fixed built-in attenuation is a cost-effective alternative to an attenuated adapter. A disadvantage with anextra adapter is that some reflection loss is introduced into the system. However, this problem can be avoided with an attenuated patch cord.
  • GH high performance attenuated patch cords can be installed in place of conventional patch cords to provide a constant level of attenuation with more than 50DB return loss, they are compact, multipurpose passive devices designed to operate in 1310nm and 1550nm wavelengths.
  • Attenuated Patch Cord can be provided with several different connectors styles with lengths up to 20 meters to meet varied customer requirements.

Features

  • Combines the functions of an attenuator and a cable assembly
  • Low back reflection
  • SM or MM available
  • Conforms to EIA/TIA standards
  • Inexpensive compared to other type of attenuator

Applications

  • Telecommunication Networks
  • Data Networks
  • Video&CATV
  • Broadband
  • FTTP

Specifications

Operating Wavelength SM:1310 or 1550nm,
MM:850nm,1300nm
Return Loss Less than 50 dB (SPC)
Less than 55 dB (UPC)
Less than 65 dB (APC)
Attenuation Accuracy +/-0.5 (1-10)dB
+/-1.0(11-30)dB
Polarization Dependent Loss: Less than 0.3dB
Attenuation Value 1~30dB
Operating Temp Range: -40~80℃

Ordering Options

Connector Type     Attenuation Level
SC UPC 1310nm 1,2,3,…25 dB
FC APC 1550nm
ST   1310/1550nm
LC   850
MU   1300
