Description
Description

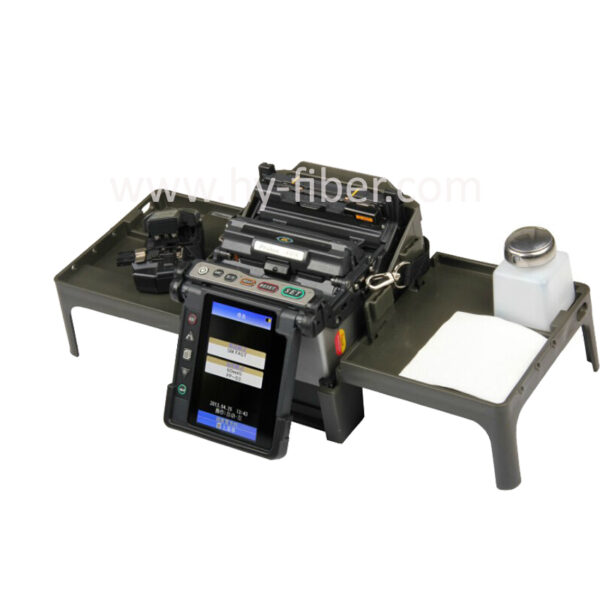

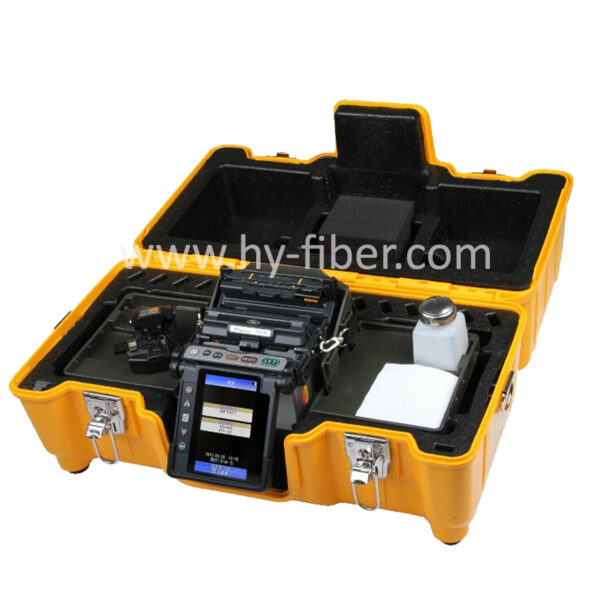

The FSM-80S is core-to-core alignment single fiber splicer succeeding to 60S. In addition to ruggedized concept, which 60S created, the 80S has a series of new features, such as “Automated wind-protector and tube-heater” for quicker splicing cycle as well as fewer operation steps, “innovative carrying-case design” for quicker preparation, “powerful Li-ion battey” for longer operation, high resolution bigger LCD monitor, and “built-in operation manuals” in various languages. Market is from backbone network installation to opto-electronics components production for quality splice..
Specification
Applicable fibres |
SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653),
|
Fibre Count |
Single |
Cladding diameter |
80 to 150μm |
Coating diameter |
100 to 1000μm |
Fibre cleaved length |
5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900 |
Actual average splice loss |
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS. |
Splice time |
7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode |
Return loss |
60dB or greater |
Splicing modes |
100 splicer modes are available |
Splice loss estimate |
Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate. |
Attenuation splice function |
Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an
|
Storage of splice result |
The last 2000 results to be stored in the internal memory. |
Magnification |
X / Y (300X magnification), or both X and Y simultaneously (160X magnification) |
Viewing method |
By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor |
Tension test |
1.96 to 2.25N |
Operating condition |
0-5000m above sea level, 0-95% RH and -10 to 50°C respectively. |
Tube heater |
Built-in auto-start tube heater with 10 heating modes and up to 20 for reference |
Tube heat time |
13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available |
Applicable protection
|
60mm, 40mm and a series of micro sleeves. |
No. of splice/heating
|
200 times of splicing and heat shrinking under with BTR-09 |
Power supply |
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09 |
Terminals |
USB2.0 ( Mini-B) for data and video signal transfer to PC. |
Wind protection |
Up to 15m/s wind velocity |
Dimensions |
146(W) x 159(D) x 150(H) mmIncluding wind protector, monitor, and rubber protectorExcluding rubber foot |
Weight |
2.5 kg, with ADC-18 AC adaptor2.7 kg, with BTR-09 battery |
Electrode life |
3000 arc-discharges |
Standard Package
Item |
Description |
Model No. |
Qty |
1 |
Fusion Splicer |
80S
|
1 pc |
2 |
AC adaptor/battery charger |
ADC-18 |
1 pc |
3 |
AC power cord |
ACC-XX |
1 pc |
4 |
Spare Electrodes |
ELCT2-20A |
1 pair |
5 |
Cleaver |
CT-30A |
1 pc |
6 |
Battery Pack |
BTR-09 |
1 pc |
7 |
USB cable |
USB-01 |
1 pc |
8 |
Quick reference guide |
M-80S/19S-E |
1 pc |
9 |
Warning and cautions |
W-70-E |
1 pc |
10 |
Instruction Manual |
M-70 |
1 pc |
11 |
Alcohol Pot |
AP-01 |
1 pc |
12 |
Battery charge cord |
DCC-18 |
1 pc |
13 |
Carrying Case |
CC-30 |
1 pc |
14 |
Screw Driver |
SD-01 |
1pc |
Optional Items
Description |
Model No. |
Note |
Fiber holder |
FH-60-250 |
For 250um coating |
FH-60-900 |
For 900um coating |
|
FH-60-LT900 |
For 900um Loose Tube Fiber |
|
FH-60-DC250 |
For Drop Cable |
|
FH-60-IDC250 |
For Indoor Cable |
|
FH-FC-20/30 |
For 2mm/3mm cord |
|
Sheath clamp |
CLAMP-S70A |
Coating diameter from 100um to 1000um(5mm to 16mm cleave)Included in standard package |
CLAMP-S70B |
900um diameter loose tube fiber (16mm cleave) |
|
DC power cord |
DCC-12 |
For ADC-11/ADC-13/ADC-18,Cigarette lighter socket type |
DCC-12 |
For ADC-11/ADC-13/ADC-18, Alligator clamp type |
|
Primary Coat Stripper |
PS-02 |
For single 250mm fiber |
Hot Jacket Stripper |
HJS-02 |
Standard |
