Description
Description

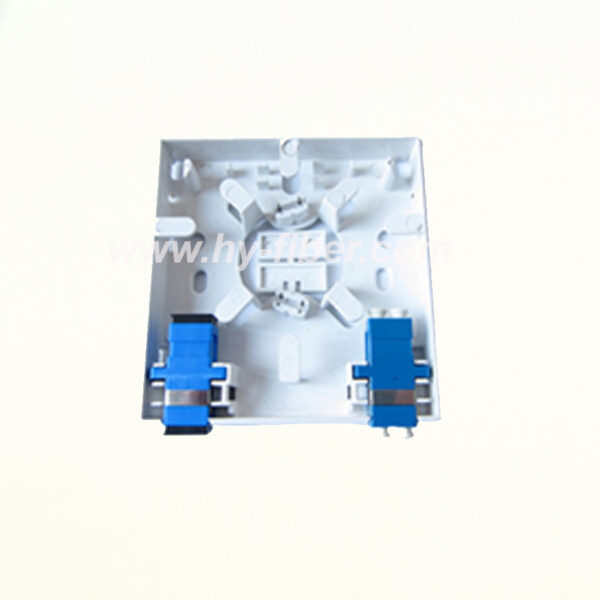

GH Communication Fibre Wall Outlet has the typical 86 x 86mm wall mounting footprint which is used to contain fibre in a variety of configurations depending on the application required, and designed for use in residential and business applications for the termination of up to four fibres.The wall box enables the installation of either a single Blown Tube cable using up to a 4 fibre blown unit to be spliced to 2 SC pigtails (PC or APC) or LC duplex(SC simplex format) which connect to adapters at the base of the unit.The unit can be quickly installed within an office, house or communication room environment.
Feature:
- Ergonomic design.
- Ability to allow cables to enter from rear or bottom of the unit.
- All fibres are positively managed to maintain a 30mm minimum bend radius.
- Optional Removable rear entry cable management.
- Flip tray to allow access to connectorised tails and cable entry.
- Standard colour white. Other colors available on request.
Specification
| Item | Type A | Type B |
| Dimension | 86x86x23mm | 86x86x20mm |
| Maximum Fiber Capacity | 2/4 | 2/4 |
| Adaptor | 2XSC simplex,2XLC duplex | 2XSC simplex,2XLC duplex |
| Cable | 900um or Drop cable | 900um or Drop cable |
| Material | ABS | ABS |
| Net weight | 53g | 47g |
| Operation temperature | -20oC to + 50oC | -20oC to + 50oC |
