Description
Description

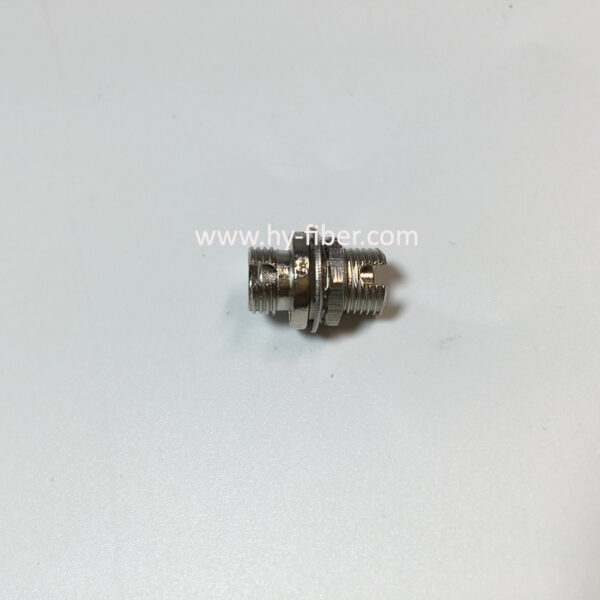

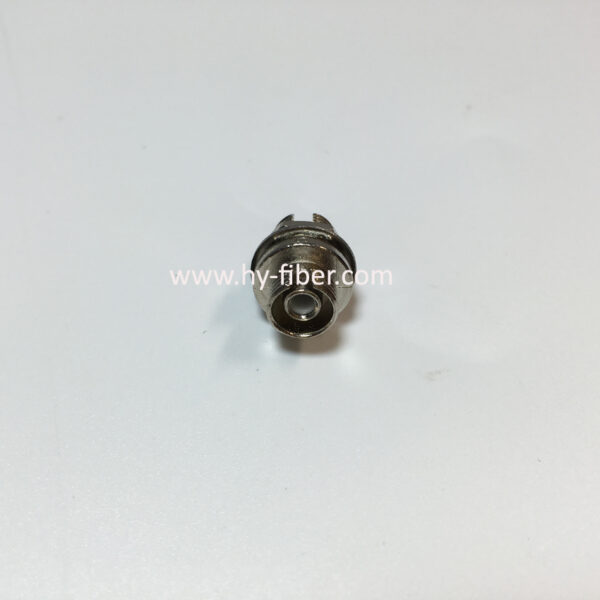

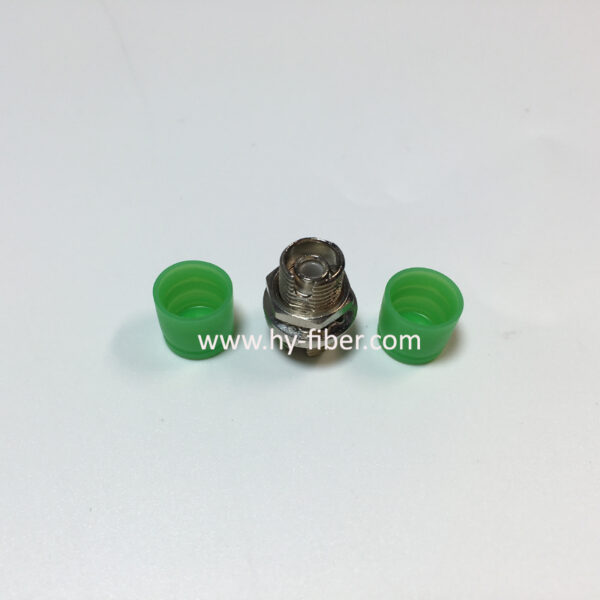

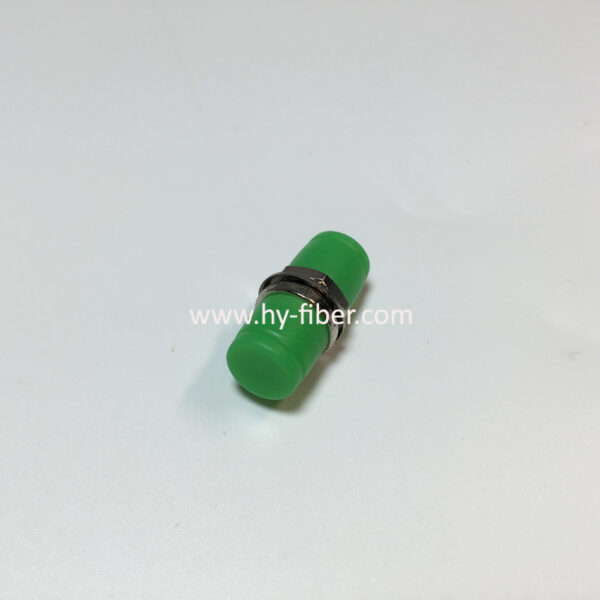

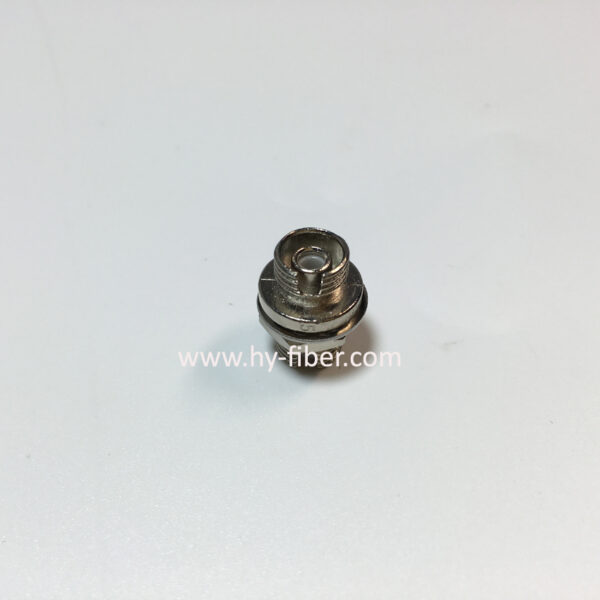

GH offers a range of quality FC adaptors which have high precision alignment sleeves for improved reliability and better reconnectability. The LC adaptors come with ceramic sleeves for singlemode and multimode. The housing is available in different colours with options for flange or flangeless body and metal, or inbuilt, clips.
Specification
Features / Benefits
- Complies with IEC 61754-20
- High precision alignment sleeve
- Low insertion loss and high reconnectability
- RoHS compliant

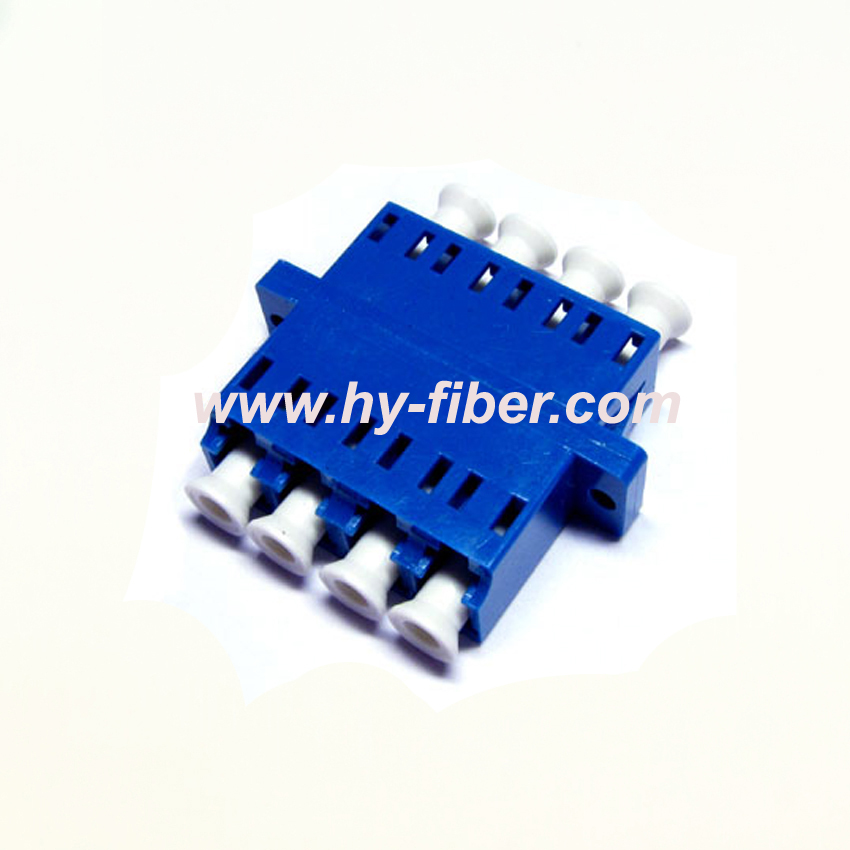

- Available in simplex, duplex and quad adaptors
Applications
- Telecommunications networks
- CATV, LAN, MAN and WAN application
- Data processing networks
- Cable television
- Fibre-to-the-home
- Premises distribution
Termination Specification
| Optical Performance | Ceramic | Conformance |
| Insertion Loss | 0.20dB | IEC 61300-3-4 |
| Mating Durability | 500 | IEC61300-2-2 |
| Receptacle Retention force | 1N – 2.5N | IEC 61754-20 |
| Operating Temperature | -25 to +70,12 cycles | IEC 61300-2-22 |
