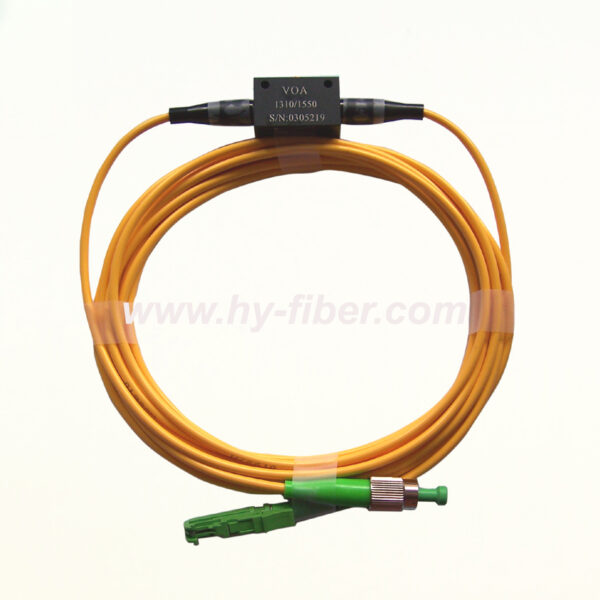

Customized Variable Fiber Optic VOA In-Line Attenuator 0dB to 60dB

$85.00

Description

Features
· Low Insertion Loss
· High Precision
· Wide Attenuation range: From 1260nm to 1620nm
· Compact Design
· Wide Operating Temperature: From -40℃ to 85℃
· Comply with Telcordia GR-1209-CORE-2001
· Telcordia GR-1221-CORE-1999 and RoHS

Applica t ions
· Fiber Communication on system test
· Optical Passive component test
· Optics lab use

Specifications

Operating wavelength (nm) 1260~1620 850/1310
Attenuation range (dB) 0.6~60 0.8~40
Original loss (dB) 0.6 0.8
Adjustment Precision (dB) 0.02
PDL (dB) 0.15
Fiber Type SMF-28e 50/125 Or 62.5/125, Multi-Mode
Maximum Optical Power (mw) 500
Operating Temperature ()℃ -40~85
Storage Temperature ()℃ -40~85
