4 Fiber FTTH Terminal Box Wall-Outlet Box Fiber Optical Junction HY-20-T-4BC1 100pcs/pack (Copy)

$160.00

Each pcs=1.6/pc

Description

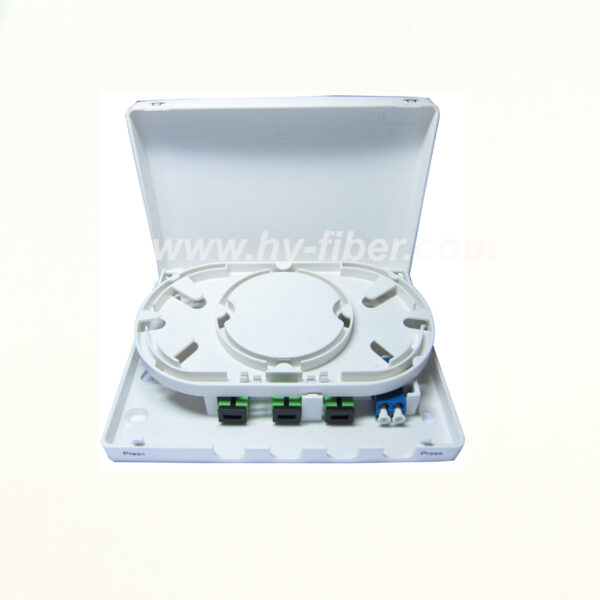

4 Port FTTH Box

Description:

GH’s 4 Port FTTH Box is a newly developed by our company for application of FTTH.The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH



Feature:

  • This box could be used for wall-mounted and rack-mounted applications;
  • The base and cover of the box adopts “self-clip” method, which is easy and convenient to open and close
  • Could be used for adaptors such as SC,FC, etc.
  • The max capacity is 4 fibers



Structure:

Specification:

Item Characteristic
Dimension 150x110x30mm
Maximum Fiber Capacity 4/8
Adaptor 4XSC simplex,4XLC duplex,4xFC simplex,4XE200 simplex
Cable 900um or Drop cable
Material PC+ABS
Net weight 100g
Operation temperature -20oC to + 50oC



Order Information:HY-20-T-4A
