4 Fiber FTTH Compact Terminal Box Wall-Outlet Box Fiber Optical Junction HY-20-T-4B 100pcs/pack

$180.00

Each pcs=1.8/pc

Description

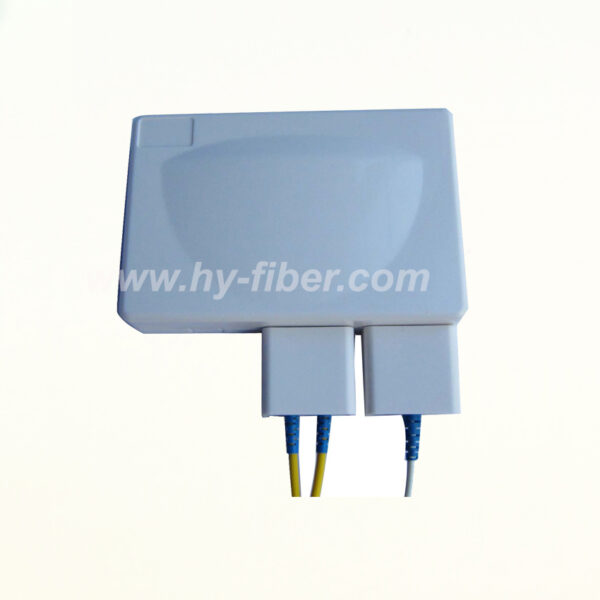

Compact FTTH Terminal Box(HY-20-T4B)

Description

The Huiyuan compact termination box is designed for use in residential and business applications for the termination of up to four fibres. The wall box enables the installation of either a single Blown Tube cable using up to a 4 fibre blown unit or two 2 fibre ruggedized cables to be spliced to four SC pigtails (PC or APC),which connect to adapters at the base of the unit. The unit can be quickly installed within an office, house or communication room environment.

Features / Benefits

  • Ergonomic design.
  • Ability to allow cables to enter from rear or bottom of the unit.
  • All fibres are positively managed to maintain a 30mm minimum bend radius.
  • Optional Removable rear entry cable management.
  • Flip tray to allow access to connectorised tails and cable entry.
  • Removable cover for easy access.
  • Tamperproof cover security screws available as an option.
  • Unit manufactured from fire resistant UL94-V0 rated material.
  • Patchcords exit unit on bottom face and are protected by two protection covers.
  • Standard colour white. Other colours available on request

Termination Specification

Descrtiption Details
Number of splice trays 1
Maximum Fibre Capacity 4/8
Maximum no. of customer feeds: 4/8 pigtails
Required space envelope (mm) (l) 80 x (w) 120 x (d) 25
Operating temperature 20oC to + 50oC (5 to 95% RH)
Material FR High Impact Polystyrene
Packing Dimensions (mm): (w) 230 x (h) 160 x (d) 60
Packed Weight (kg): 0.55
Net weight (kg): 0.50

Testing

Descrtiption Standard
Dry heat: BS EN 60068-2-2 Test Bb
Damp heat: IEC 60068-2-3: 19
Change of temperature: IEC 60068-2-14: 1984
Vibration: IEC 60068-2-6: 1995
Shock: IEC 60068-2-27: 1987
