Description
Description:

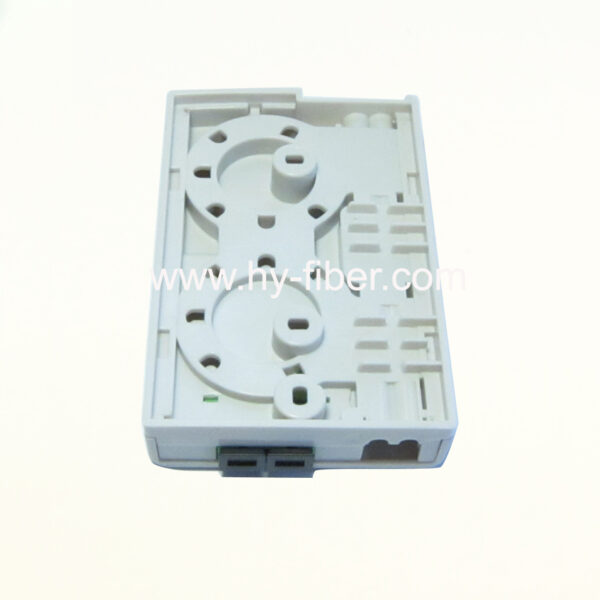

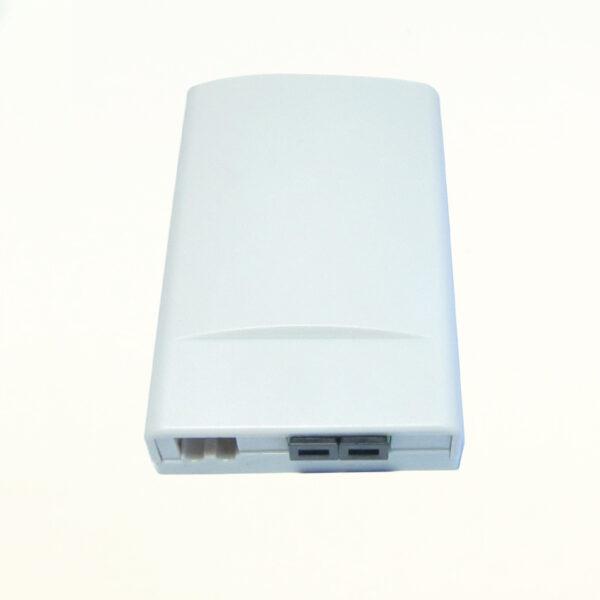

GH’s 2 Port FTTH Box is a FTTH terminal box, made of ABS plastic, it is
designed for use in residential and business applications for the termination
of up to 2 fibers. It can hold max 2 SC adapters. The unit can be quickly installed
within an office ,house or communication room environment.
It is available for the distribution and terminal connection for various
kinds of optical fiber system, especially suitable for mini‐network terminal
distribution, in which the optical cables, patch cores or pigtails are connected.
Feature:
- small size, light weight, pleasing in appearance, easy to installation;

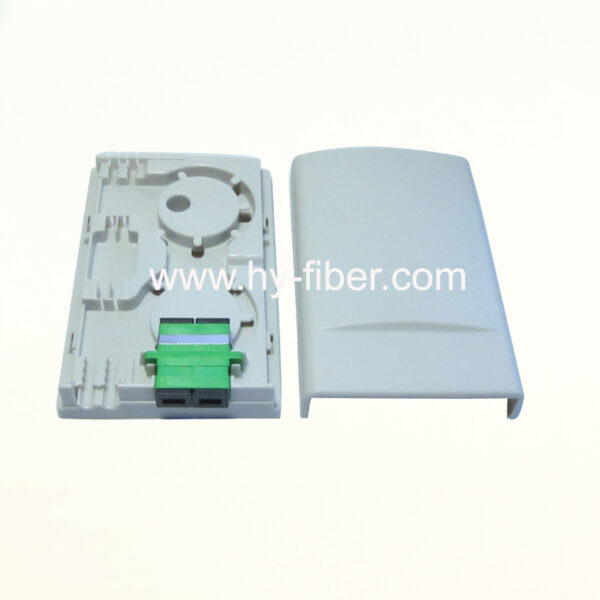

- Removable cover for easy access;
- Up to 2 fiber cable;
- Optical fiber can be managed effectively;
- Wall mounting or desk‐top mounting ;
- SC 2 cores, LC 4 cores. Max capacity for SC 2 cores or LC 4 cores;
- Reasonable inner space design;
- A user end product to realize optical fiber to desktop solution;
- Realize FTTD(fiber to the desktop)system and provide users
with optical access or data access;
- Used in the end termination of residential buildings and villas, to fix and splice with pigtails;
- ROHS compliance.
Specification:
| Item | Characteristic |
| Dimension(L*W*H) | 120x80x23mm |
| Maximum Fiber Capacity | 2 |
| Adaptor | 2XSC simplex,2X LC duplex |
| Color | grey |
| Material | ABS |
| Net Weight | 75g |
| Operation Temperature | -20oC to + 50oC |
Order Information: HY‐20‐T‐2A
