2.5mm OD Ceramic Sleeve for SC/FC/ST Fiber Connector Good Insertion Loss 200pcs/pack

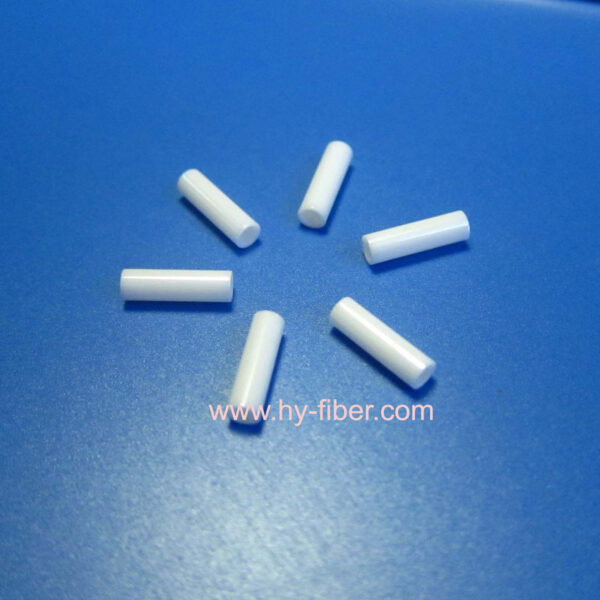

Name: 2.5mm OD Ceramic Sleeve for SC/FC/ST Fiber Connector Good Insertion Loss 200pcs/pack
SKU: 1143
Price: 13.00 USD
Availability: InStock

$13.00

Each pcs=USD0.065/pc

Categories: Fiber Ferrule & Adapter Sleeve, Fiber Optical Accessories Tag: adapter sleeve

Description
Reviews (0)

Description

Description

Ceramic Split sleeves are used in Adapters and other fiber optic components for fiber alignment to get minimal insertion loss of the transmitted light signal. Ceramic Splits sleeves is categorized into two types used for ferrule outer diameters of 12.5mm and 2.5mm. They are used for connecting and aligning ferrules used with ST, FC, SC, LC and MU Fiber Connectors.

Specification

Parameter	Unit	FC,LC,SC				ST,MU			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9
