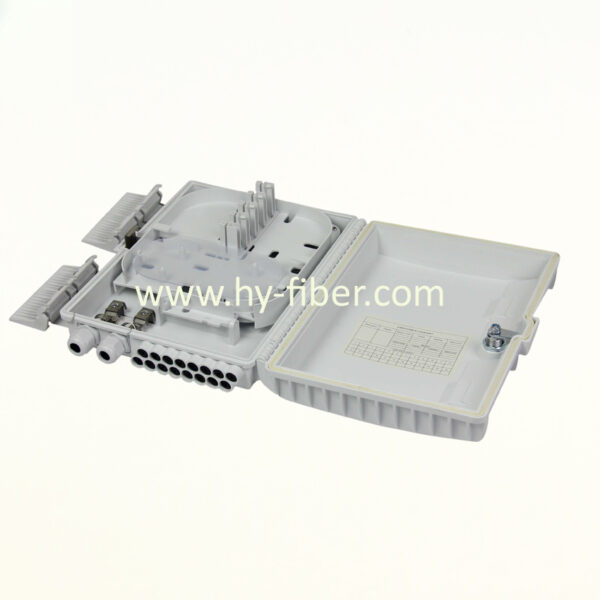

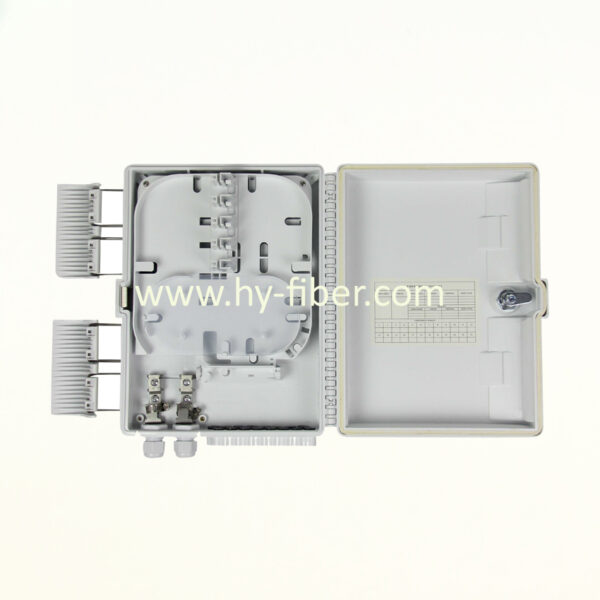

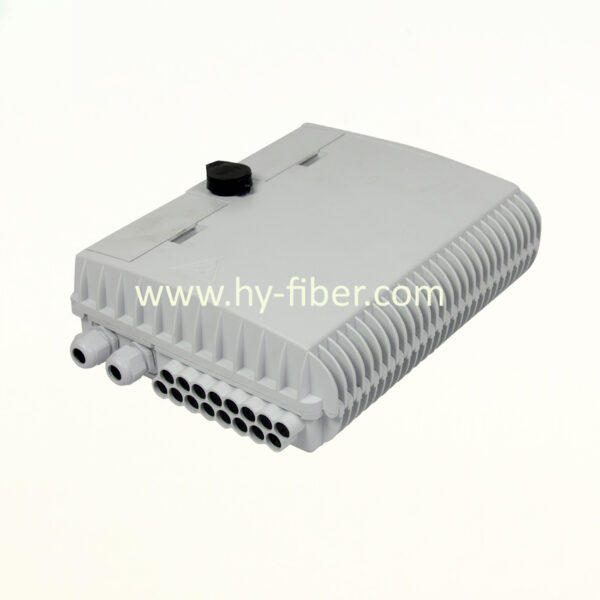

16 Fiber FTTH Terminal Box Fiber Optical Junction Box Water Proof For 1×16 PLC Splitter HY-20-T-16D

$10.00

Description

16 port FTTH terminal box( HY-20-T16D)

Description

This Lockable distribution box offers the ability to terminate 16 fibres housed in a strong robust SMC enclosure for indoor and outdoor applications.

With the ability to us both SC simplex and LC duplex adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.

In addition to the interchangeable adaptors the enclosure also offers up to 16 exit points for patching cables and 2 standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armoured cable.

Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.

Feature

  • Up to 16 fibres
  • Removable splice tray for easy installation
  • Multiple adaptor options available
  • Accepts loose tube, distribution and pre-terminated cables
  • Integrated bend radius protection
  • Removable door for ease of installation
  • ROHS compliant
  • Supplied with 16 heatshrink splice protectors
  • Supplied with transit tubing
  • Supplied with wall fixings and tie wraps

Application

  • Data centres, premise installations, telecommunication networks
  • Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
  • Data communication and telecommunication networks
  • Wall mounted/Pole mounted,Indoor/outdoor applications

Specification

Description
Dimension 315x235x100mm
Capacity 16fibers
Adapter 16xsc simplex, 16xlc Duplex
Operation Temperature -40c~+60c
N.W/G. W 1.6/1.9kgs



Order Information: HY-20-T16D
