Description
Overview

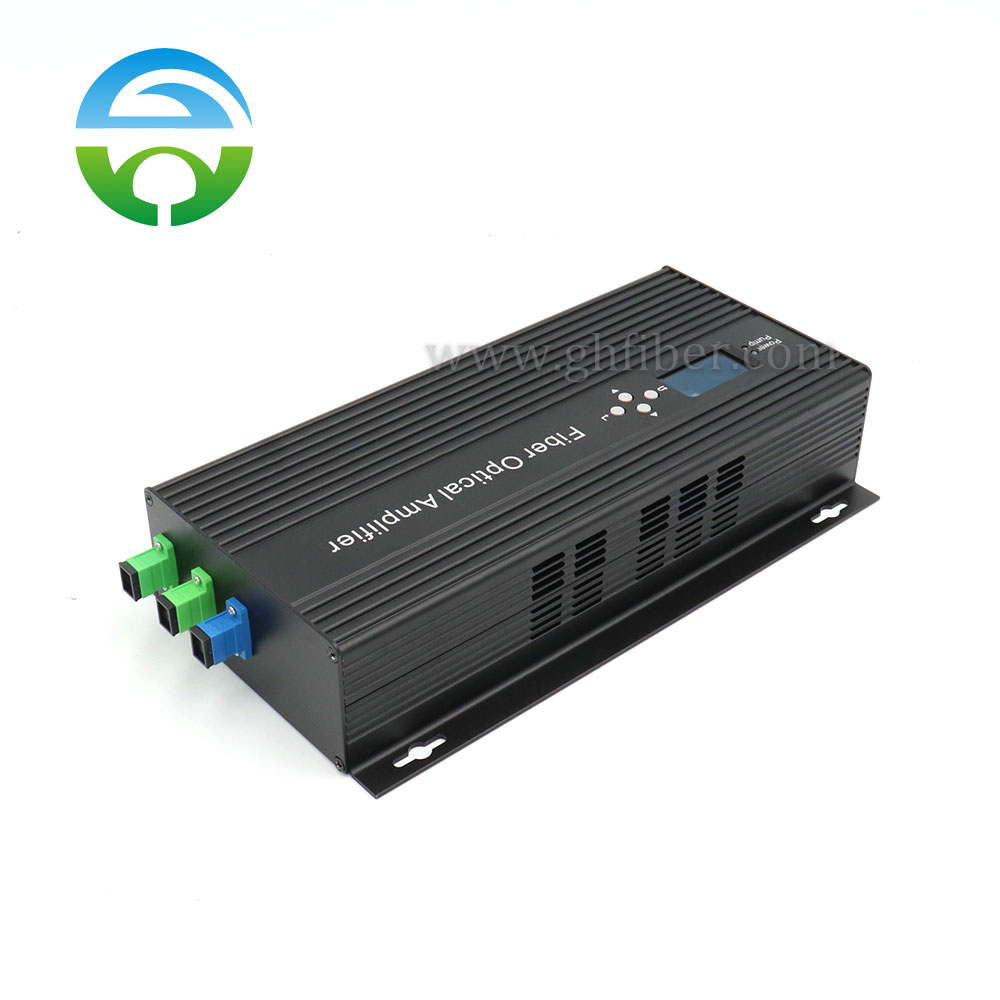

HY-21-AMxx series 1550nm ytterbium-doped fiber amplifier is equipped with stable optical output power circuit and pump laser thermoelectric cooling device Temperature stability control circuit to ensure the best performance of the equipment and long-life laser stability. The microprocessor software monitors the lasers’ working state, the Digital Panel displays the operating parameters. With professional heat dissipation structure design, intelligent temperature control fan and low power consumption make it to be the ideal choice for building the 1550nm large and medium-sized optical transmission network.
Specification
| Item | Parameter |
| Optical | |
| Wavelength | 1540 ~ 1560 nm |
| Input power range | -5 ~ +10 dBm (nominal +3 dBm) |
| Output power range | 13 ~ 24 dBm |
| Difference of output power | ± 0.05 dB |
| Noise figure (Pin = 0 dBm) | ≤ 5.0 dB |
| Return loss | ≥ 45 dB |
| Pump power leakage | ≤ -30 dBm |
| User interface | |
| optical connector | SC/APC or SC/PC |
| Power supply | AC 90 ~ 265V |
| HMI | LCD display, button |
| Online monitor | Ethernet |
| Other characteristic | |
| Machine power consumption | <20 W |
| Operating temperature | -5ºC to + 65ºC |
| Storage temperature | -20ºC to + 70ºC |
| Relative humidity | 10% to 95% (no condensing) |
| Dimension | Device：423 × 330 × 45 mm |
| Package：51 × 60 × 14 cm | |
| Weight | 8.6Kg |
