Description
Description

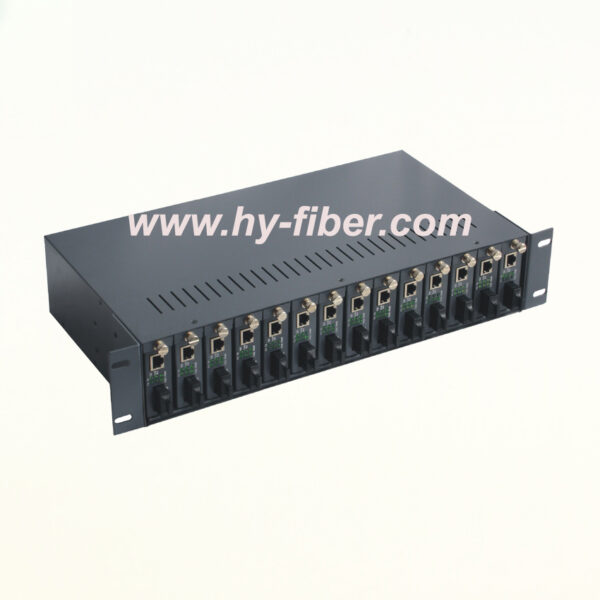

The Media Converter Rack is designed to accommodate separate and independent media converters with a rack-mountable chassis. The rack is developed for telecom fiber networking project as a matched product. It is applicable to the working environment of high reliability, high capacity, high integration and perfect performance. The rack is stable performance, large capacity of power supply, and ease for management and maintenance. Before using this rack, please read this manual carefully, please install and operate it as following this manual to avoid the damage.
Main features
◆The power of the Rack can be supplied by the type of single power or dual power. Adopting dual power supply, the load of each power supply can be reduced and the life of the power supply would extend. When one power supply is at fault, the other one could work independently. It would enhance the reliability of the RACK.
◆Supplying the Converters or Powers to be plugged and played.
◆It is possessed of stable performance, large capacity of power supply, and ease for management and maintenance
◆2U high: 19-inch standard design
Technical Specifications
◆Capacity : 14/16 slots available
◆Power: Input: AC 100 ～ 260V, 50～60HZ；or DC48V;
Output: DC +5V 12A(single power) or 24A(dual power);
◆Vein: ≤50mv
◆Noise：≤50mv
◆Power protection: protection from over voltage, over current and short circuit
◆Working temperature：0～50℃
◆Storage temperature：-20℃～70℃
◆Relative Humidity：5%～95%
◆Dimensions: 485 (wide) × 245 (length) × 90 (high) mm
