Description

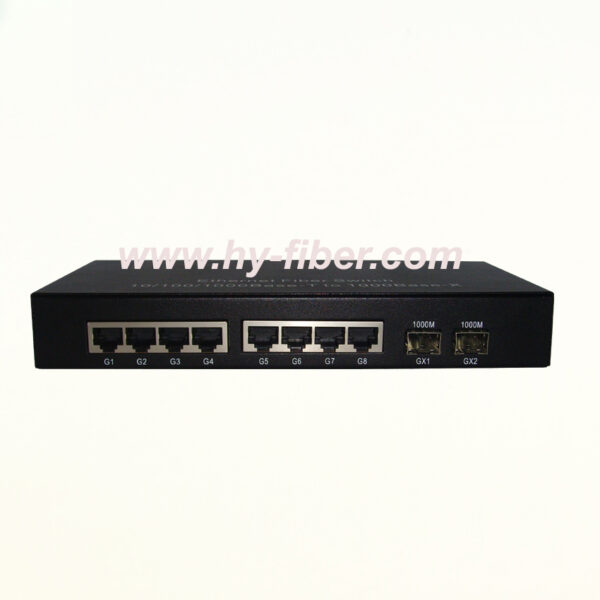

IEEE802.3z/AB 1000Mbps 10 port Gigabit Ethernet Switches supports two types media for network connection and switching such as 10/100/1000Base-T and 1000Base-SX/LX. The switch is designed with a switch controller and buffer memory that connects two types segments to operate smoothly. The Switch with 2 SFP port 1000Base-T/SX/LX and8 RJ45 port 10/100/1000Base-T(selectable). The RJ45 port support Half or Full Duplex modes. All SFP ports support only 1000Mbps and Full-Duplex modes. With external power unit, it provides good stability and reliability.
- Technical Specifications
The 10 Ports Gigabit Ethernet Switch conforms to the following standards:
- Standerds: IEEE 802.3z/AB 10/1001000Base-T
1000Base-SX/LX/ZX
- Fiber Cable:
1000SX: 50/125，62.5/125µm molti-mode
1000LX/ZX: 8.7/125, 9/125µm single-mode.
- UTP Cable: 5e or Cat.6 cable up to 100m.
- Data Transfer Rate:
RJ45 port: 10M, 100M, 1000Mbps
SFP: 1000Mbps.
- LED Indicators :
GX1-GX8,GE1,GE2,Link/Act, PWR.
- Duplex Modes: RJ45 port: NWay Full/Half
Duplex auto- negotiation
SFP: full-duplex mode
- Power Requirement: 220V(100-260V)AC，50Hz
DC5V/2A
- Ambient Temperature: 0 ～ 50℃
- Humidity: 5% ～ 90%
- dimensions：28 × 160 × 80mm（H×W×D）
