Description
Description:

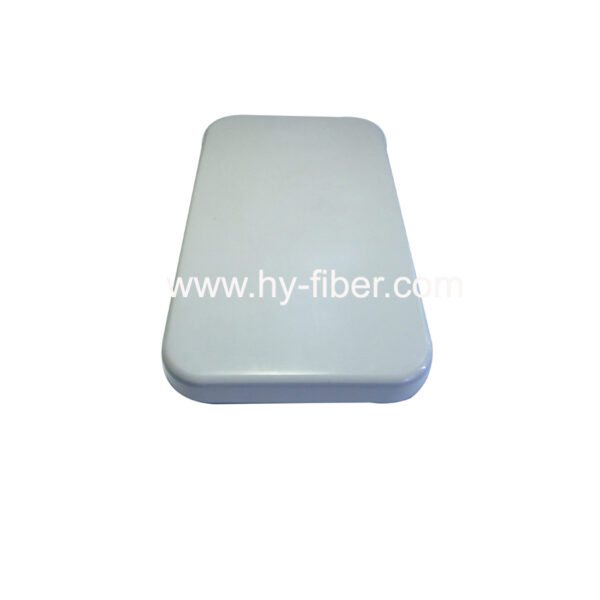

GH’s FTTH wall outlet is designed for use in residential and
business applications for the termination of up to four fibers. The
wall outlet can be quickly installed within an office, house or
communication room environment.
Feature:
- Flat design, it is applicable for wall‐mounted indoor or
outdoor.
- The protection grade is IP20.
- It is suitable for Max capacity of 2 pieces of SC simplex
or LC duplex adapters installation and usage;
- Utilizes reduced bend radius fiber (G657.a and B)

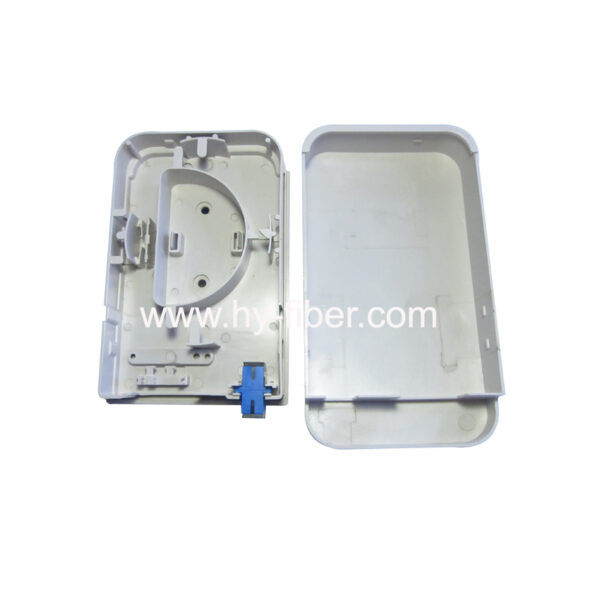

- Removable cover for easy access.
- RoHS compliant
- Ability to allow cables to enter from rear or bottom of
the unit.
- Standard color grey.
Specification:
| Item | Characteristic |
| Dimension(L*W*H) | 200×110×40mm |
| Maximum Fiber Capacity | 4 |
| Maximum Number of Customer Feeds | 4 patch cords |
| Color | grey |
| Material | ABS |
| Net Weight | 190g |
| Operation Temperature | -20oC to + 50Oc |
| Adaptor | 2 ×SC simplex , 2 ×LC duplex |
| Input Cable Diameter | 3‐7mm |
| Number of Input Cable Positions | 4 |
Order Information: HY‐20‐T‐2A
